Ignition System Wiring Diagram (2001 3.9L V6 Dodge Ram 1500 Pickup)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 3.9L V6 Dodge Ram 1500 Pickup: 2001.
• 3.9L V6 Dodge Ram 2500 Pickup: 2001.

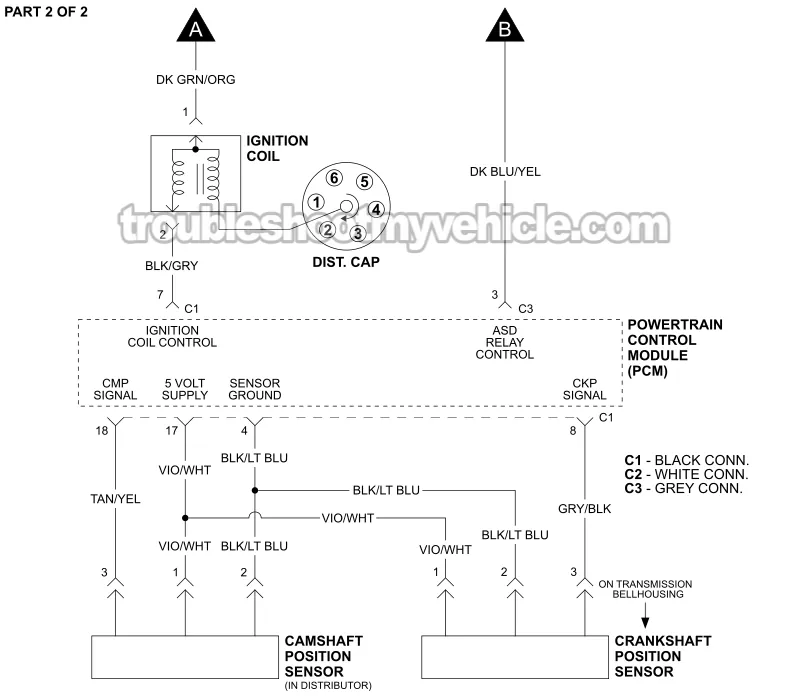

This typical circuit diagram includes the following circuits:

• Ignition coil.
• Crankshaft position (CKP) sensor.
• Camshaft position (CMP) sensor.

The camshaft position sensor is also known as the distributor pickup coil.

IGNITION SYSTEM TESTS:

• How To Test The Camshaft Position Sensor (1998-2001 3.9L V6 Dodge Ram Pickup).
• How To Test The Ignition Coil -No Start Tests (Chrysler 3.9L, 5.2L, 5.9L).
• How To Test The Crank Sensor (1994-1996 3.9L, 5.2L, 5.9L Chrysler).

Ignition System Wiring Diagrams

Here's a complete list of ignition system wiring diagrams for the 3.9L V6 Dodge Ram pickup:

• Ignition System Circuit Wiring Diagram (1989 3.9L V6 Dodge Ram Pickup).
• Ignition System Circuit Wiring Diagram (1990-1991 3.9L V6 Dodge Ram Pickup).
• Ignition System Wiring Diagram (1992-1993 3.9L V6 Dodge Ram Pickup).
• Ignition System Wiring Diagram (1994-1995 3.9L V6 Dodge Ram Pickup).
• Ignition System Wiring Diagram (1996-1997 3.9L V6 Dodge Ram 1500 Pickup).
• Ignition System Wiring Diagram (1998-2000 3.9L V6 Dodge Ram Pickup).
