Fuel Pump Circuit Wiring Diagram (1998-2001 5.2L, 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge 1500 Pickup: 1998, 1999, 2000, 2001.
• 5.2L, 5.9L V8 Dodge 2500 Pickup: 1998, 1999, 2000, 2001.
• 5.9L V8 Dodge 3500 Pickup: 1998, 1999, 2000, 2001.

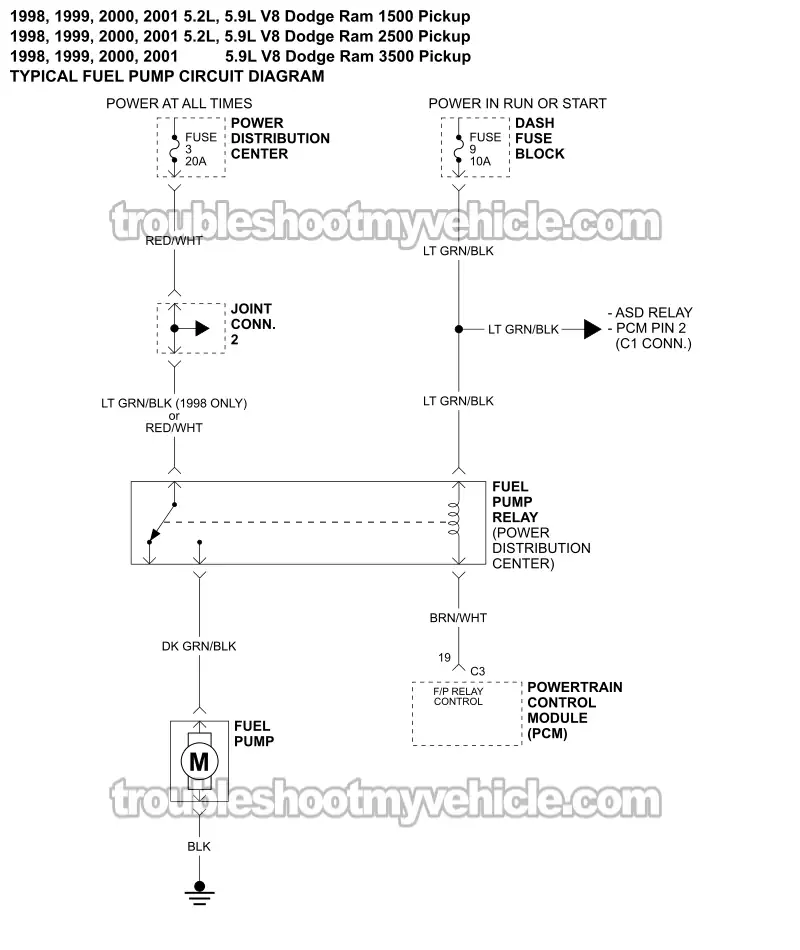

This typical circuit diagram includes the following circuits: fuel pump and fuel pump relay circuits.

The fuel pump is located in the gas tank.
