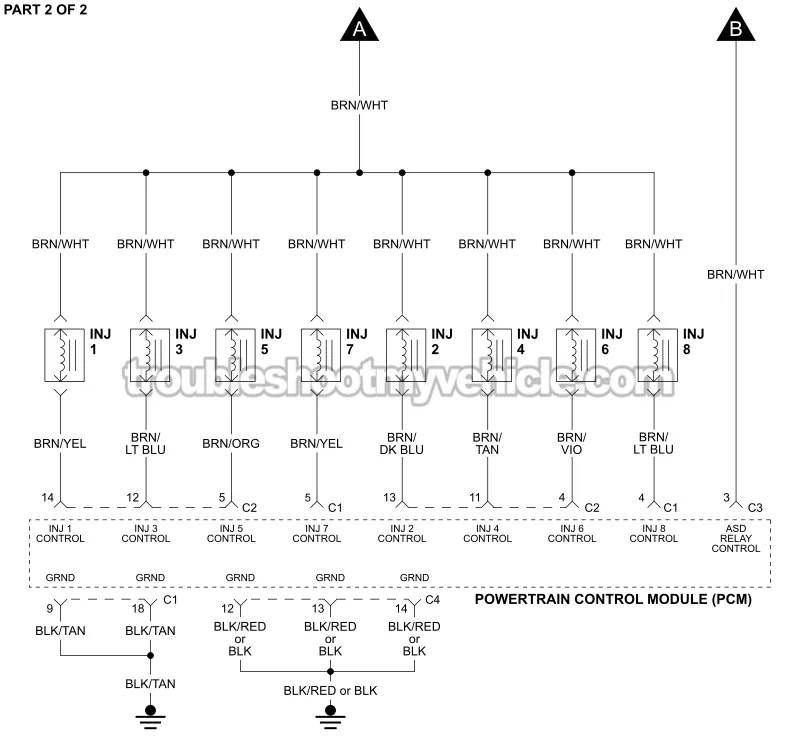

Fuel Injector Circuit Wiring Diagram (2004-2005 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge Ram 1500: 2004, 2005.
