Ignition System Wiring Diagram (2003 4.7L V8 Dodge Ram Pickup)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 4.7L V8 Dodge Ram 1500: 2003.

This circuit diagram includes the following circuits:

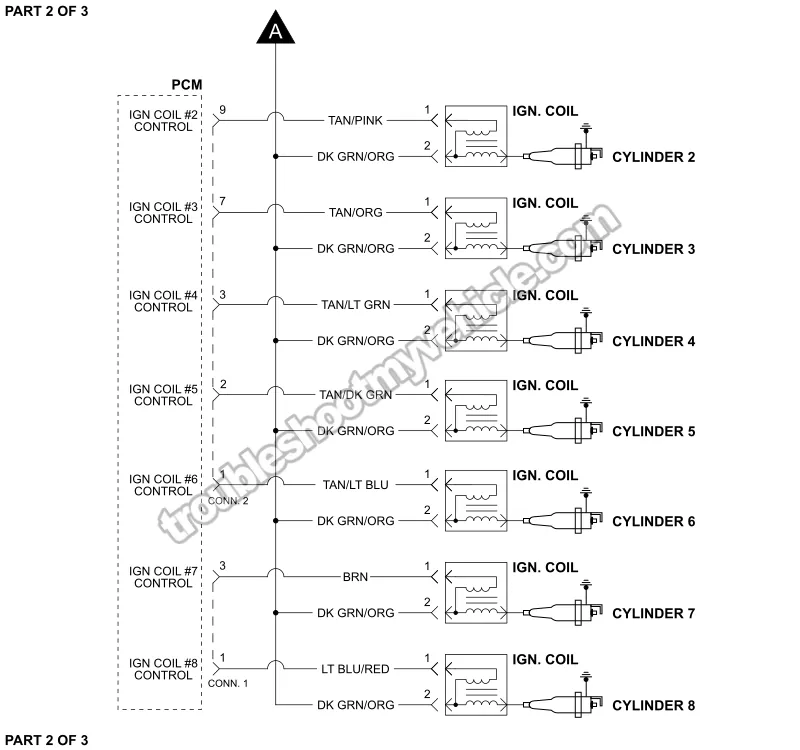

• Ignition coils.

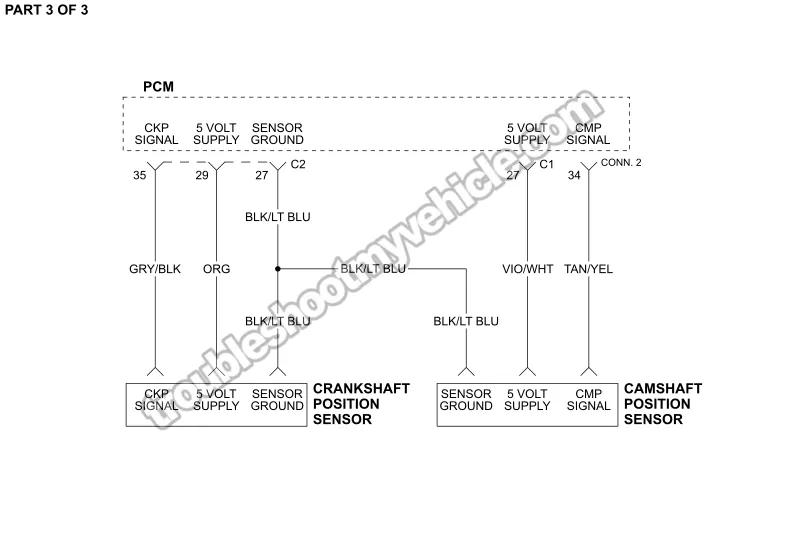

• Camshaft position (CMP) sensor.
• Crankshaft position (CKP) sensor.
