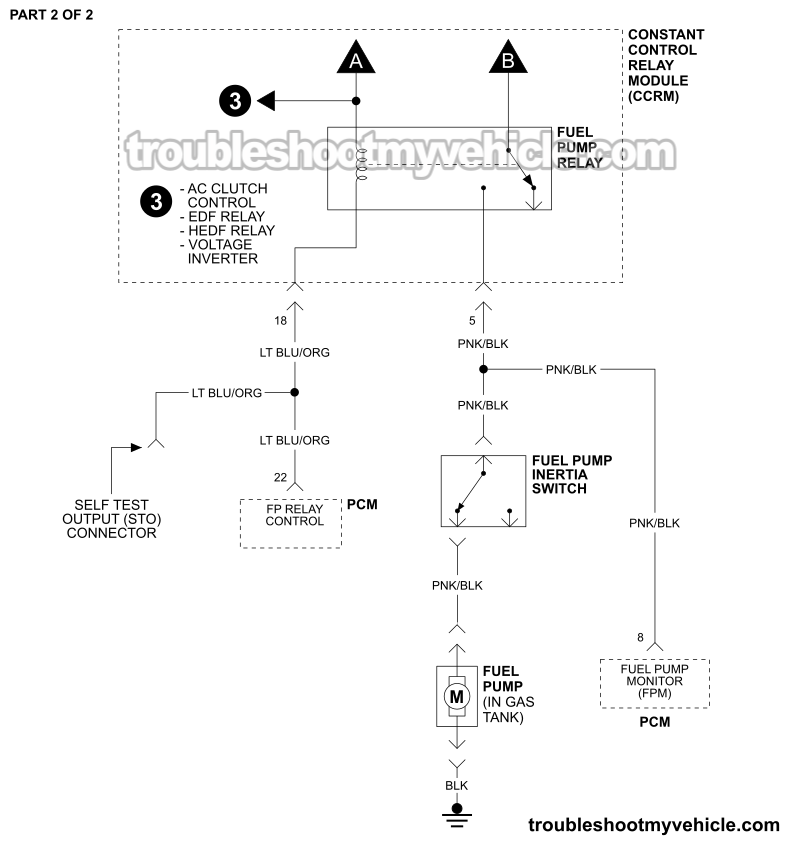

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:
- 3.8L V6 Ford Taurus: 1993, 1994, 1995.
- 3.8L V6 Mercury Sable: 1993, 1994, 1995.
The wiring diagram includes the following circuits:
- PCM Power Relay: Found inside the Integrated Control Relay Module assembly.
- Fuel Pump Relay: Built into the same Integrated Control Relay Module.
- Fuel Pump Inertia Switch: Located in the trunk on sedans or cargo area in wagons, near the right rear wheel well.
- Fuel Pump: Mounted inside the fuel tank.
CHECKING FUEL PRESSURE: This tutorial explains how to do the fuel pump pressure test with a fuel pressure test gauge:
