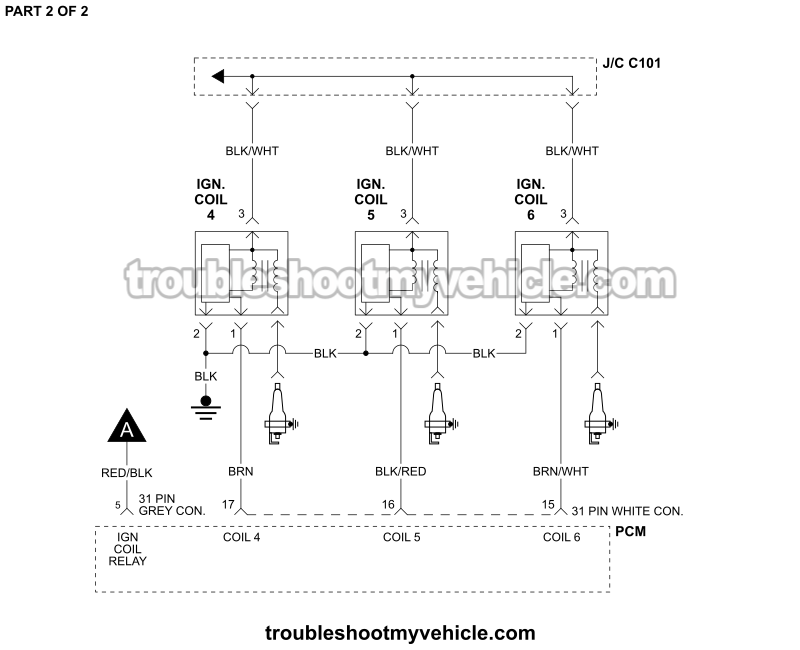

Ignition Coil Circuit Wiring Diagram (2003-2007 3.0L V6 Honda Accord)

APPLIES TO: This ignition coil circuit wiring diagram applies to the following vehicles:

• 3.0L V6 Honda Accord: 2003, 2004, 2005, 2006, 2007.

IGNITION SYSTEM TESTS: The following step-by-step tutorials will help you test the ignition system:

• How To Test The Ignition Coils (2003-2007 3.0L V6 Honda Accord).

ENGINE NO-START DIAGNOSTICS: The basic checks/tests to figure out why the engine won't start:

• How To Troubleshoot A No Start (1998-2007 3.0L V6 Honda Accord).

CYLINDER MISFIRE DIAGNOSTICS: The essentials of diagnosing a cylinder misfire:

• How To Test a Misfire Condition and Misfire Codes (1998-2007 3.0L V6 Honda Accord).
