![PART 1 -Ignition System Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Grand Caravan, Voyager, Grand Voyager PART 1 of 2 -Ignition System Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Grand Caravan, Voyager, Grand Voyager](/images/articles-900-999/910/918/circuit-diagram-1.jpg)
![PART 2 -Ignition System Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Grand Caravan, Voyager, Grand Voyager PART 2 of 2 -Ignition System Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Grand Caravan, Voyager, Grand Voyager](/images/articles-900-999/910/918/circuit-diagram-2.jpg)
APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:
- 3.3L V6 Dodge Caravan: 1994, 1995.
- 3.3L V6 Dodge Grand Caravan: 1994, 1995.
- 3.3L V6 Plymouth Voyager: 1994, 1995.
- 3.3L V6 Plymouth Grand Voyager: 1994, 1995.

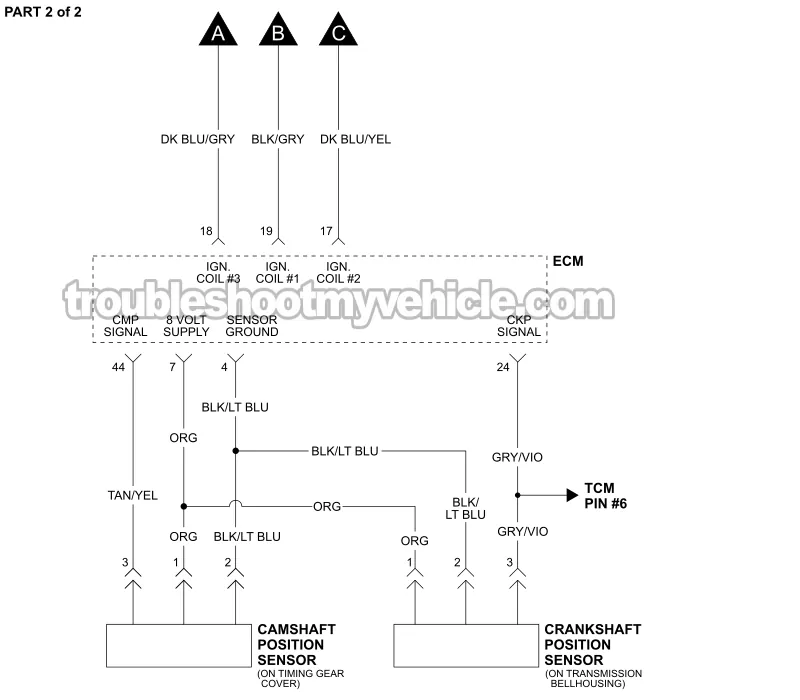

This typical circuit diagram includes the following circuits: ignition coil pack, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.
More 3.3L V6 Chrysler, Dodge, And Plymouth Mini-Van Tutorials
You can find a complete list of tutorials in this index: Chrysler 3.3L Index Of Articles.
- How To Test The MAP Sensor (2001-2004 3.3L V6 Chrysler And Dodge Mini-Van).
- How To Test The Alternator (2001-2007 3.3L Chrysler).
- How To Test Engine Compression (1991-2007 3.3L V6 Chrysler, Dodge, Plymouth Mini-Van).
- How To Test The Coil Pack 3.3L, 3.8L Chrysler, Dodge, Plymouth (at: easyautodiagnostics.com).
