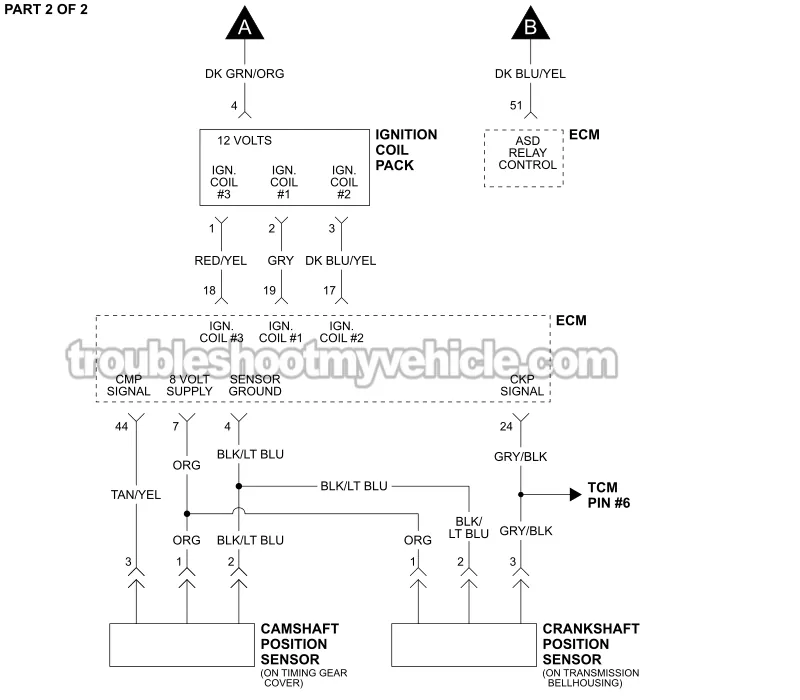

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:
- 3.3L V6 Chrysler Town & Country: 1992, 1993.
- 3.3L V6 Dodge Caravan: 1992, 1993.
- 3.3L V6 Dodge Grand Caravan: 1992, 1993.
- 3.3L V6 Plymouth Voyager: 1992, 1993.
- 3.3L V6 Plymouth Grand Voyager: 1992, 1993.
This typical circuit diagram includes the following circuits: ignition coil pack, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.
