Fuel Injector Wiring Diagram (1992-1993 3.9L V6 Dodge Ram Pickup)

  • By: Abraham Torres-Arredondo
  • Created: 09 May 2025
  • Updated: 10 May 2025
  • Articl Id: 1696
PART 1 OF 2: Fuel Injector Wiring Diagram (1992, 1993 3.9L V6 Dodge Ram Pickup) PART 2 OF 2: Fuel Injector Wiring Diagram (1992, 1993 3.9L V6 Dodge Ram Pickup)

APPLIES TO: This fuel injector wiring diagram applies to the following vehicles:

  • 3.9L V6 Dodge Ram 150 Pickup: 1992, 1993.
  • 3.9L V6 Dodge Ram 250 Pickup: 1992, 1993.

FUEL INJECTOR TESTS:

Fuel Injector Wiring Diagrams

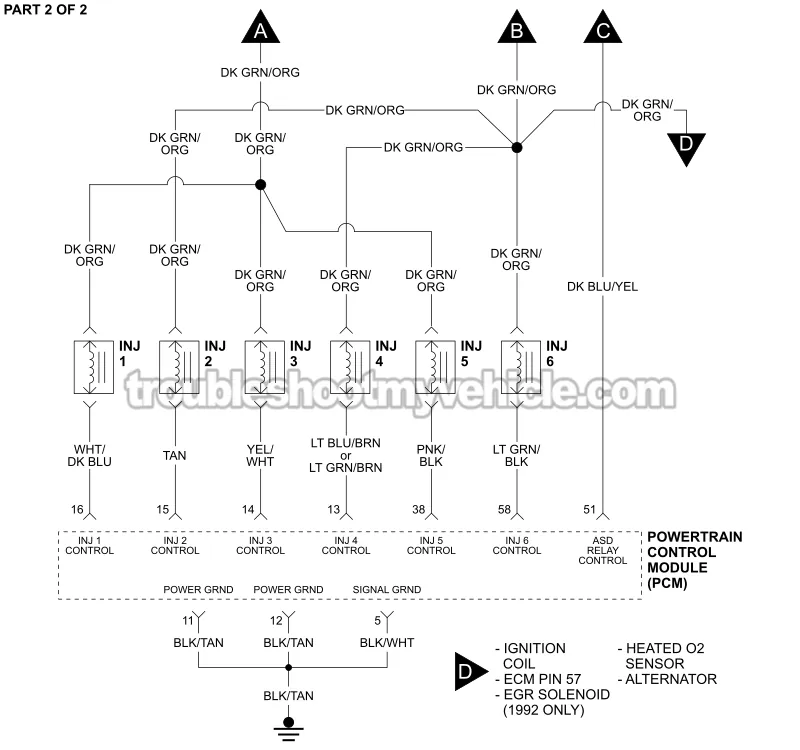

Here's a complete list of fuel injector circuit wiring diagrams for the 3.9L V6 Dodge Ram pickup:

More 3.9L V6 Dodge Ram Pickup Tutorials

You can find a complete list of V6 Dodge Ram pickup tutorials and wiring diagrams in this index:

Here's a sample of the tutorials you'll find in the index:
