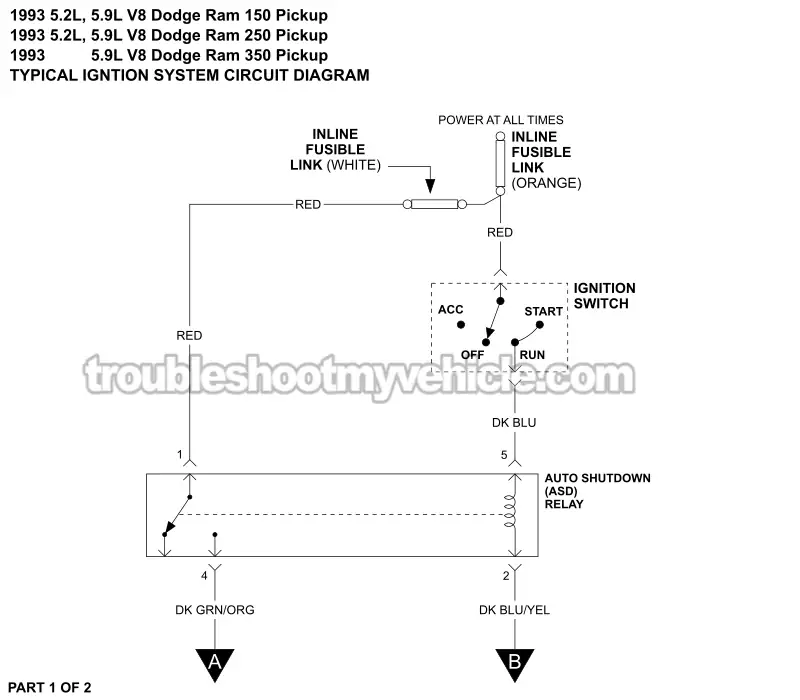

Ignition System Wiring Diagram (1993 5.2L, 5.9L V8 Dodge Ram Pickup)

APPLIES TO: This ignition system wiring diagram applies to the following vehicles:

• 5.2L, 5.9L V8 Dodge Ram 150 Pickup: 1993.
• 5.2L, 5.9L V8 Dodge Ram 250 Pickup: 1993.
• 5.9L V8 Dodge Ram 350 Pickup: 1993.

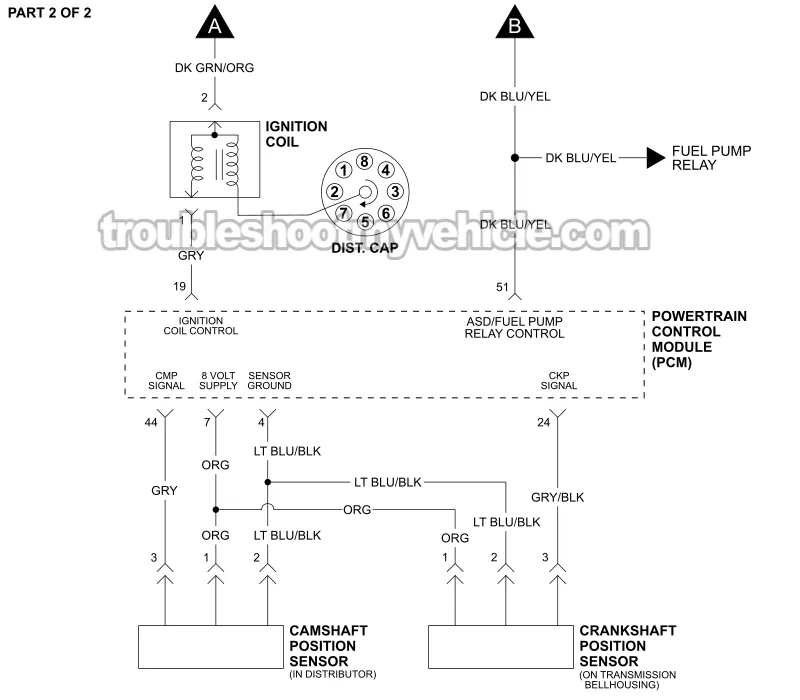

This typical circuit diagram includes the following circuits:

• Ignition coil.
• Camshaft position (CMP) sensor (distributor pickup coil).
• Crankshaft position (CKP) sensor.

Ignition System Tests

• How To Test The Ignition Coil (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
• How To Test The Camshaft Position Sensor (1992-1995 5.2L, 5.9L V8 Dodge Ram Pickup).
