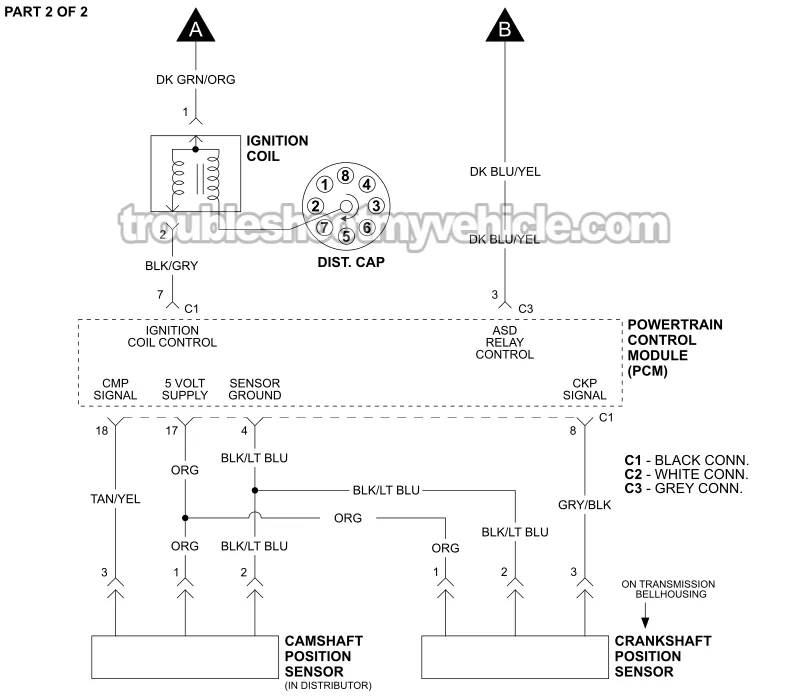

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:
- 5.9L V8 Dodge Ram 1500 Pickup: 2003.
This circuit diagram includes the following circuits:
- Ignition coil.
- Crankshaft position (CKP) sensor.
- Camshaft position (CMP) sensor.
The camshaft position sensor is also known as the distributor pickup coil.
Ignition System Tests
- How To Test The Ignition Coil (1992-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
- How To Test The Camshaft Position Sensor (1998-2003 5.2L, 5.9L V8 Dodge Ram Pickup).
- How To Test The Crank Sensor (1994-1996 3.9L, 5.2L, 5.9L Chrysler).
Ignition System Wiring Diagrams
Here's a complete list of ignition system wiring diagrams for the V8 Dodge Ram pickup:
- Ignition System Circuit Wiring Diagram (1989 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Circuit Wiring Diagram (1990-1991 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (1992 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (1993 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (1994-1995 5.2L. 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (1996-1997 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (1998-2000 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (2001 5.2L, 5.9L V8 Dodge Ram Pickup).
- Ignition System Wiring Diagram (2002 5.9L V8 Dodge Ram Pickup).
