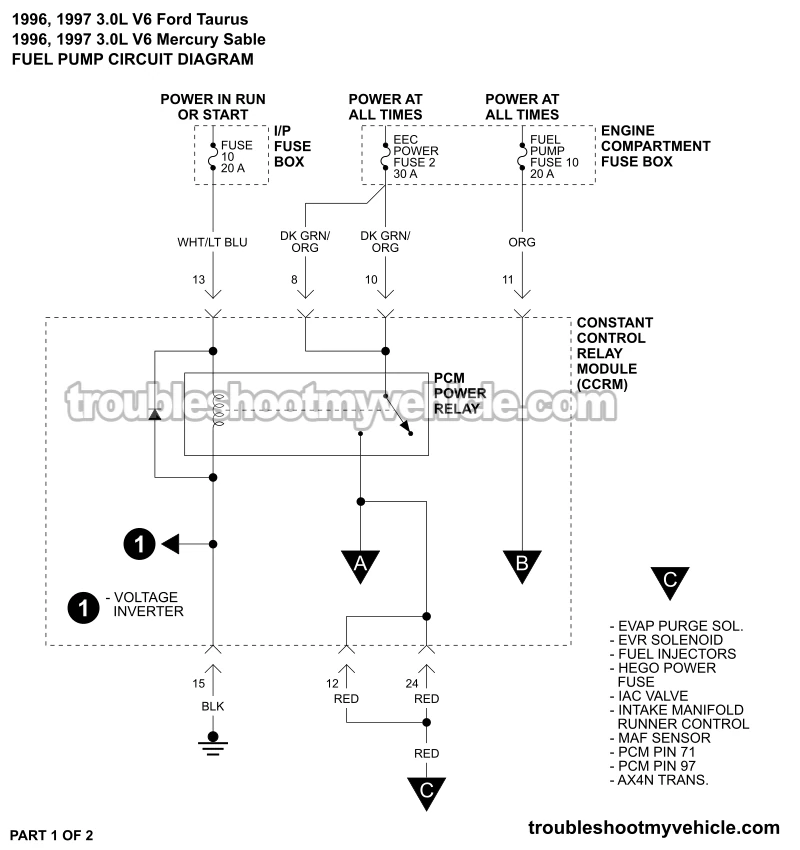

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:
- 3.0L V6 Ford Taurus: 1996, 1997.
- 3.0L V6 Mercury Sable: 1996, 1997.

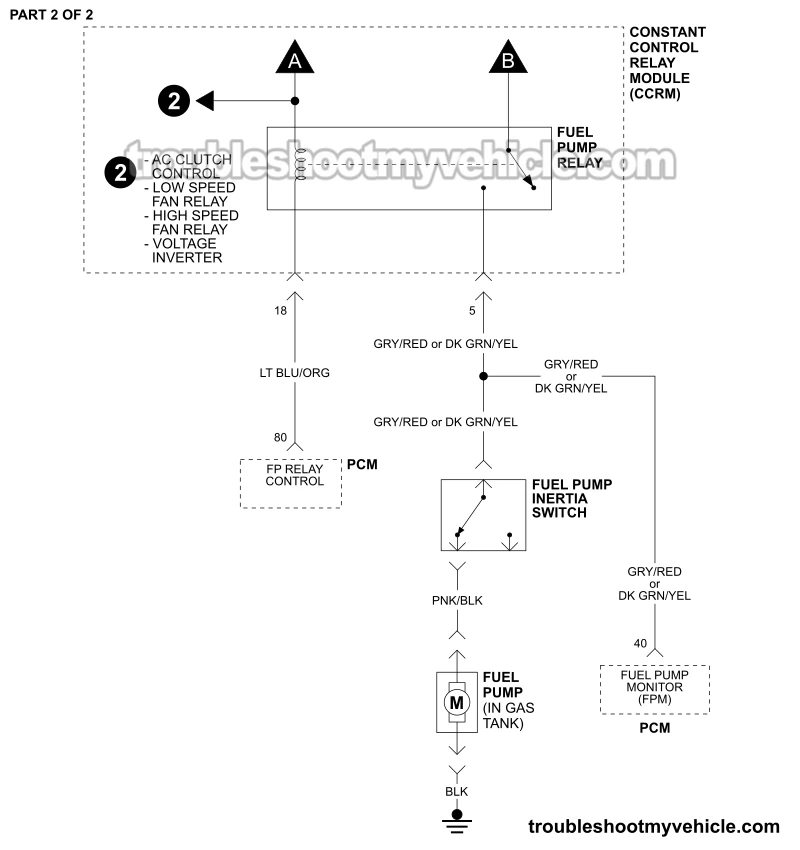

The wiring diagram includes the following circuits:
- PCM Power Relay: Inside the Constant Control Relay Module (CCRM).
- Fuel Pump Relay: Inside the Constant Control Relay Module (CCRM).
- Fuel Pump Inertia Switch: In trunk (sedan) or cargo area (wagon), next to right side wheel well.
- Fuel Pump: In gas tank.
CCRM MODULE PINOUT: You'll find the CCRM module terminal pinout chart here:
FUEL PUMP PRESSURE TEST: The following tutorial explains how to check the fuel pump with a fuel pressure gauge:
FUEL PUMP INERTIA SWITCH DIAGNOSTICS: The fuel pump inertia switch can easily be tested and I'll show you how in the following guides:
- Fuel Pump Inertia Switch: Location, Function, And Reset (1991-2007 3.0L V6 Ford Taurus, Mercury Sable).
- Power To Fuel Pump Check (1991-1999, 2001 3.0L V6 Ford Taurus, Mercury Sable).
