APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:
- 3.0L V6 Ford Taurus: 1991.
- 3.0L V6 Mercury Sable: 1991.

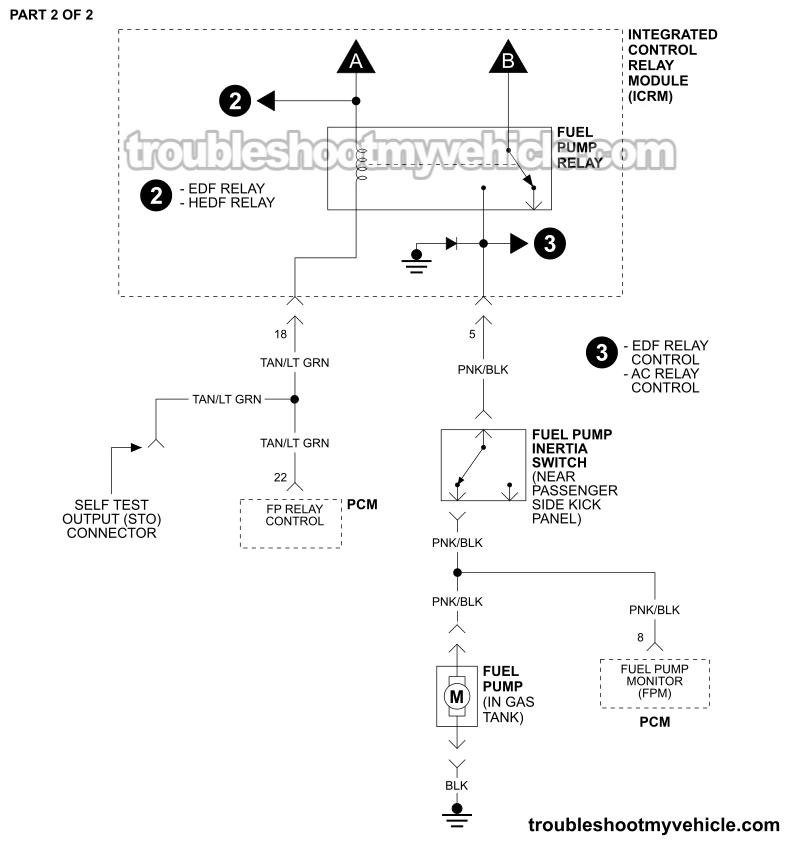

The wiring diagram includes the following circuits:
- PCM Power Relay: Found inside the Integrated Control Relay Module assembly.
- Fuel Pump Relay: Built into the same Integrated Control Relay Module.
- Fuel Pump Inertia Switch: Located in the trunk on sedans or cargo area in wagons, near the right rear wheel well.
- Fuel Pump: Mounted inside the fuel tank.
CHECKING FUEL PRESSURE: This tutorial explains how to do the fuel pump pressure test with a fuel pressure test gauge:
FUEL PUMP INERTIA SWITCH DIAGNOSTICS: The tutorials below will walk you through the fuel pump inertia switch tests step by step.
- Fuel Pump Inertia Switch: Location, Function, And Reset (1991-2007 3.0L V6 Ford Taurus, Mercury Sable).
- Power To Fuel Pump Check (1991-1999, 2001 3.0L V6 Ford Taurus, Mercury Sable).
Related Fuel Pump Circuit Wiring Diagrams
- Fuel Pump Circuit Wiring Diagram (1992 3.0L V6 Ford Taurus, Mercury Sable).
- Fuel Pump Circuit Wiring Diagram (1993-1995 3.0L V6 Ford Taurus, Mercury Sable).
- Fuel Pump Circuit Wiring Diagram (1996-1997 3.0L V6 Ford Taurus, Mercury Sable).
More 3.0L V6 Ford Taurus Wiring Diagrams And Tutorials
You can find a complete list of wiring diagrams and diagnostic test tutorials here:
Here's a sample of the tutorials you'll find there:
- How To Test The TPS With A Multimeter (1991-1995 3.0L V6 Ford Taurus, Mercury Sable).
- How To Test The Fuel Injectors (1991-1995 3.0L V6 Ford Taurus).
- How To Test The MAF Sensor (1991-1995 3.0L V6 Ford Taurus, Mercury Sable).
- How To Test For A Blown Head Gasket (1990-2007 3.0L V6 Ford Taurus, Mercury Sable).
