Fuel Pump Circuit Wiring Diagram (1993-1995 3.0L V6 Ford Taurus, Mercury Sable)

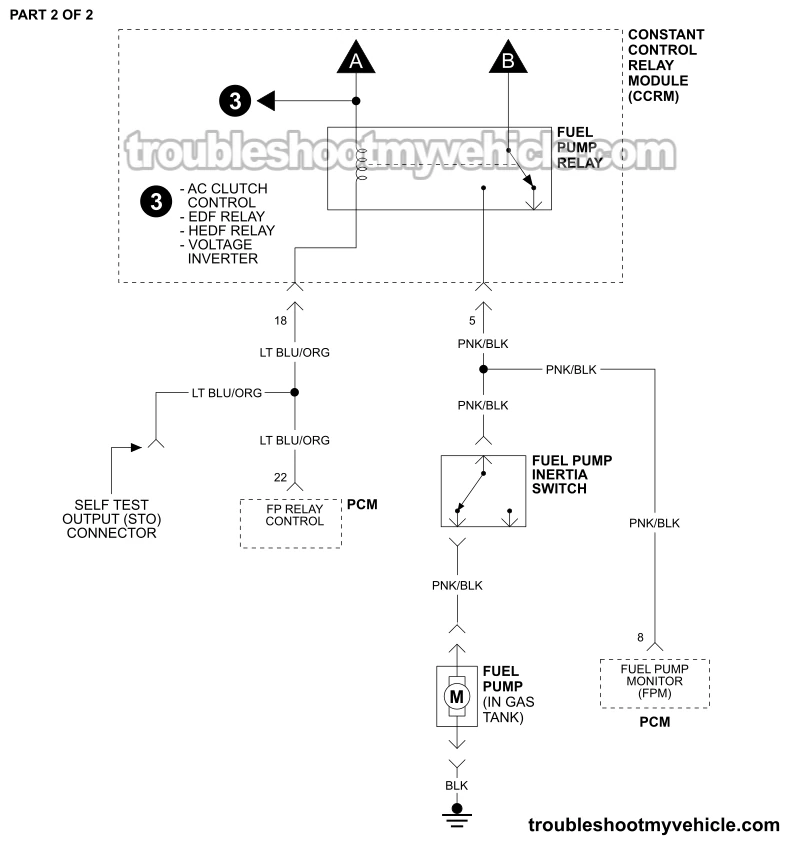

PART 1 OF 2: Fuel Pump Circuit Wiring Diagram (1993, 1994, 1995 3.0L V6 Ford Taurus, Mercury Sable) PART 2 OF 2: Fuel Pump Circuit Wiring Diagram (1993, 1994, 1995 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

  • 3.0L V6 Ford Taurus: 1993, 1994, 1995.
  • 3.0L V6 Mercury Sable: 1993, 1994, 1995.

The wiring diagram includes the following circuits:

  • PCM Power Relay: Inside the Constant Control Relay Module (CCRM).
  • Fuel Pump Relay: Inside the Constant Control Relay Module (CCRM).
  • Fuel Pump Inertia Switch: In trunk (sedan) or cargo area (wagon), next to right side wheel well.
  • Fuel Pump: In gas tank.

CCRM MODULE PINOUT: Module connector terminal identification chart:

FUEL PUMP PRESSURE TEST: This guide walks you through the fuel pump pressure test step-by-step:

FUEL PUMP INERTIA SWITCH DIAGNOSTICS: The tutorials below will walk you through the fuel pump inertia switch tests step by step.
