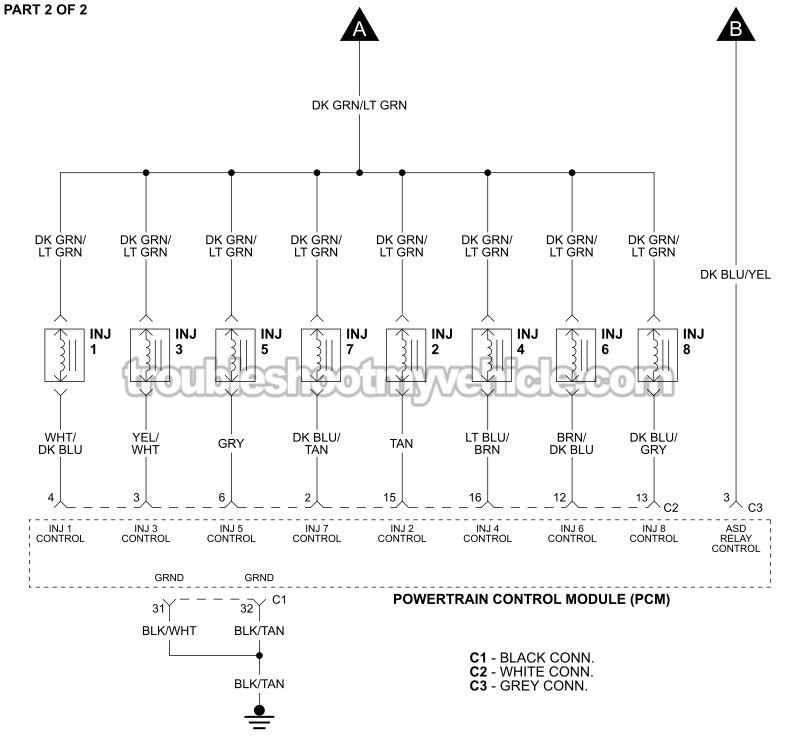

Fuel Injector Circuit Wiring Diagram (1999-2001 4.7L V8 Jeep Grand Cherokee)

APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:

• 4.7L V8 Jeep Grand Cherokee: 1999, 2000, 2001.

FUEL INJECTOR TESTS:

• How To Test The Fuel Injectors (2002-2009 4.7L V8 Dodge Ram Pickup).

INJECTOR SPRAY PATTERN TEST:

• How To Check Fuel Injector Spray (1999-2007 4.7L V8 Jeep Grand Cherokee).

CYLINDER MISFIRE DIAGNOSTICS:

• How To Troubleshoot A Cylinder Misfire -P0300↔P0308 (1999-2007 4.7L V8 Jeep Grand Cherokee).

Fuel Injector Circuit Wiring Diagrams

• Fuel Injector Circuit Wiring Diagram (2002-2004 4.7L V8 Jeep Grand Cherokee).
• Fuel Injector Circuit Wiring Diagram (2005-2006 4.7L V8 Jeep Grand Cherokee).
• Fuel Injector Circuit Wiring Diagram (2007 4.7L V8 Jeep Grand Cherokee).
