Fuel Injector Circuit Wiring Diagram (2002-2004 4.7L V8 Jeep Grand Cherokee)

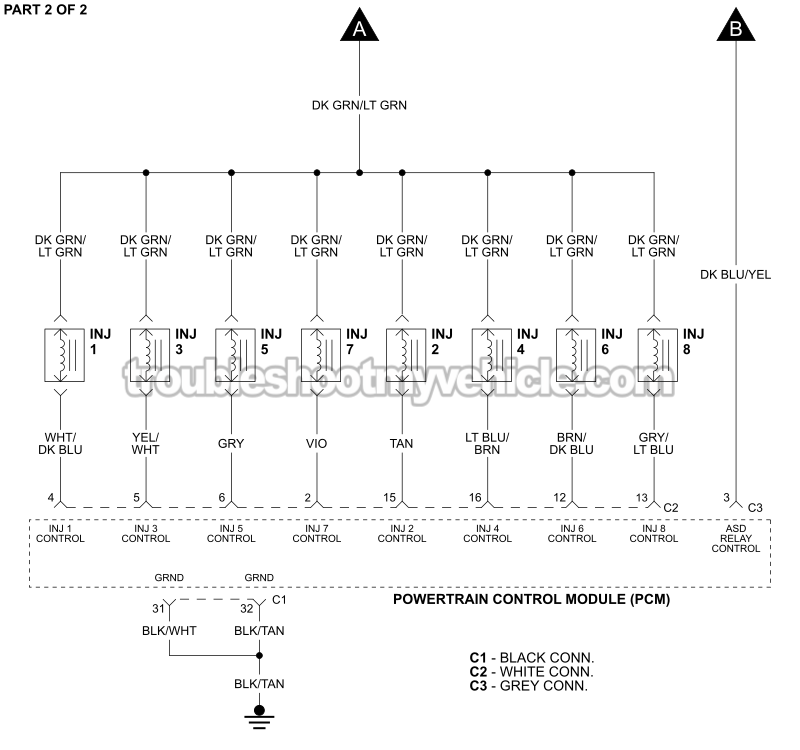

APPLIES TO: This simplified fuel injector circuit wiring diagram applies to the following vehicles:

• 4.7L V8 Jeep Grand Cherokee: 2002, 2003, 2004.
