CKP Sensor Wiring Diagram (1996-1999 3.0L V6 Ford Taurus, Mercury Sable)

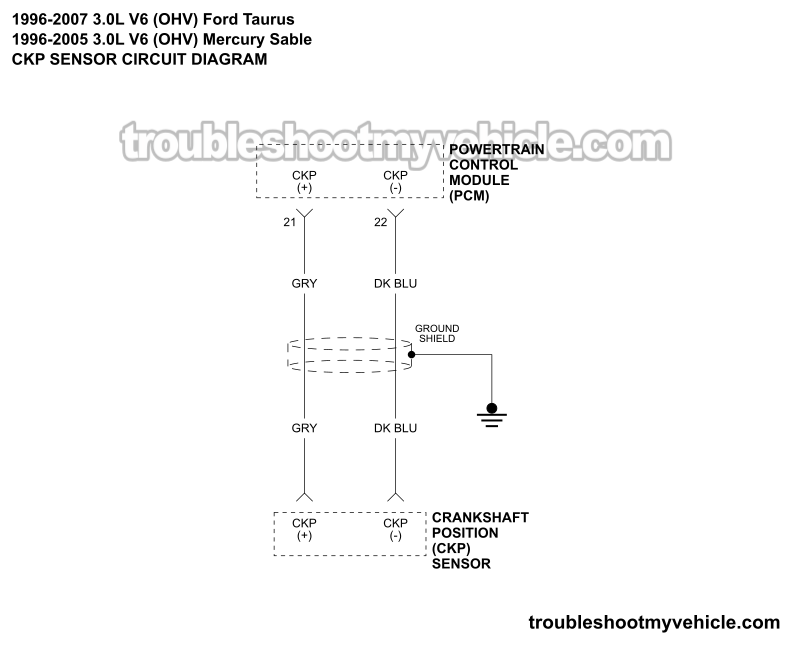

APPLIES TO: This simplified CKP sensor circuit wiring diagram applies to the following vehicles:

• 3.0L V6 (OHV) Ford Taurus: 1996, 1997, 1998, 1999.
• 3.0L V6 (OHV) Mercury Sable: 1996, 1997, 1998, 1999.
