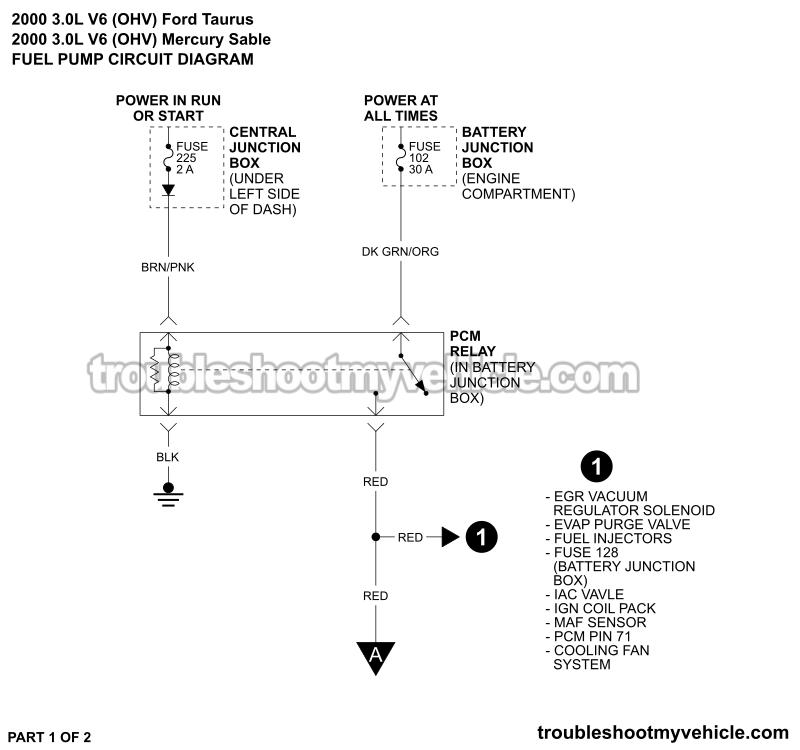

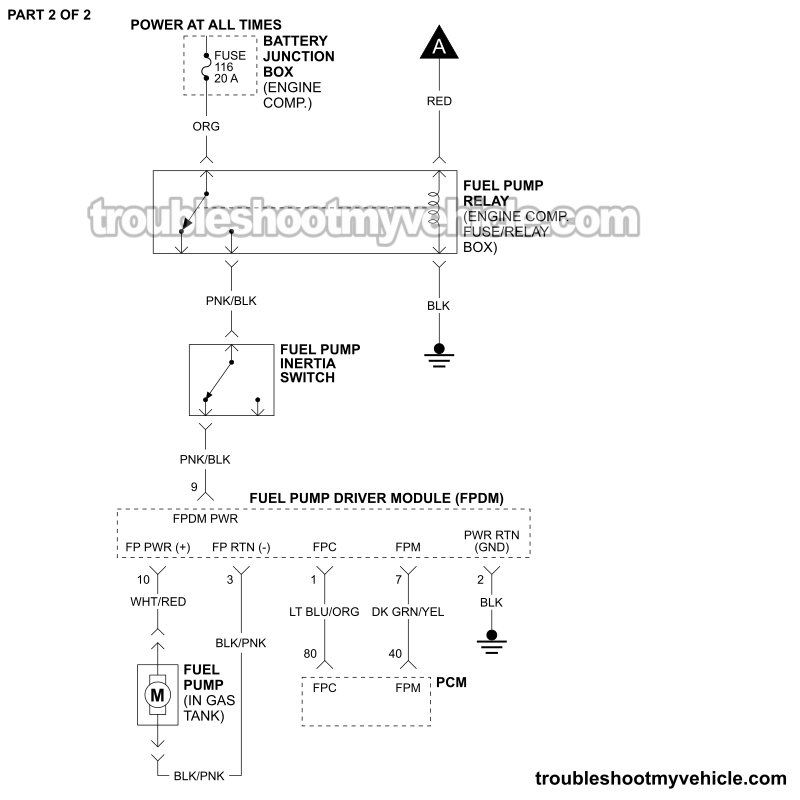

Fuel Pump Circuit Wiring Diagram (2000 3.0L V6 Ford Taurus, Mercury Sable)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

The wiring diagram includes the following circuits:

WIRE COLOR LEGEND:

FUEL PUMP PRESSURE TESTS:

FUEL PUMP DRIVER MODULE (FPDM) TESTS:

Fuel Pump Driver Module Tests (2000, 2002-2007 3.0L V6 Ford Taurus, Mercury Sable).

ENGINE NO-START DIAGNOSTICS:

How To Test An Engine No-Start (1990-2007 3.0L V6 Ford Taurus, Mercury Sable).
